Virtual Lab: Minilab Overview
University of Virginia

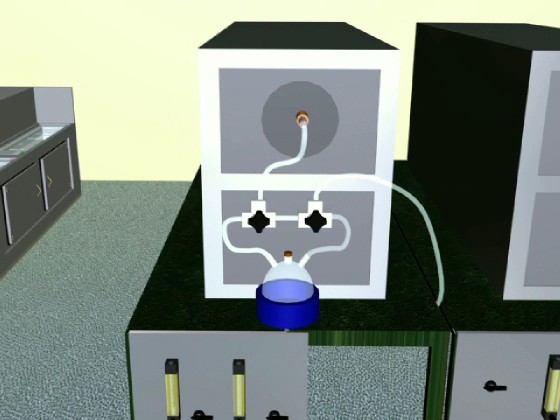

Oxidation furnace plumbing
Bubbler
Flowmeters and gas switching valves
© 2003-Present, John C. Bean

The plumbing on the oxidation furnace allows you to switch between a flow of dry O2, or to route it through a container of boiling H20.

O2 passing over boiling water becomes saturated with water vapor and this promotes faster growth of SiO2. This "wet" or "steam" oxide is thus used where thicker oxide layers are required. On the other hand, oxides grown with simple O2 are of a higher electrical quality and must be used in the "gate" electrodes of transistors.




Move the mouse over labels on the left to see detailed descriptions of equipment.
