Virtual Lab: Capacitor and a Resistor
University of Virginia


© 2003-Present, John C. Bean

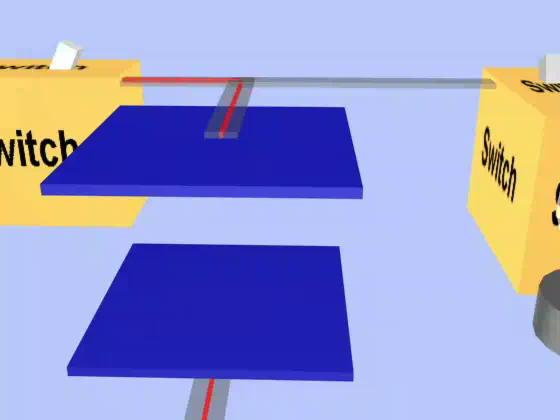

The first switch is thrown back to disconnect the cell from the capacitor. When the second switch is thrown the light bulb is connected to the capacitor (and not the cell).

The current that flows through the light bulb is at its maximum and the light bulb is at its brightest.
