Virtual Lab: Making an Integrated Circuit (IC)
© 2003-Present, John C. Bean

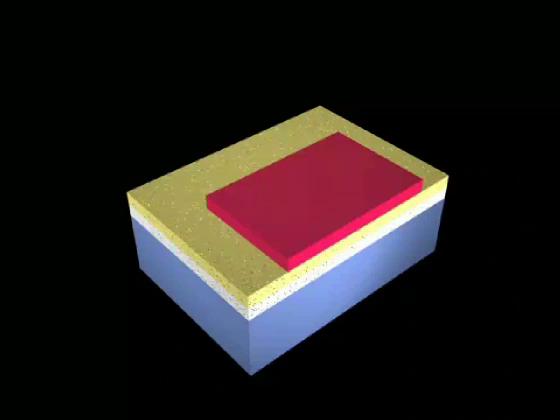

Portions of the Si
3
N
4
layer not protected by emulsion are etched away by exposure to chemically reactive ions.
The remaining emulsion is removed by strong solvent.
