Virtual Lab: Making an Integrated Circuit (IC)
University of Virginia


© 2003-Present, John C. Bean

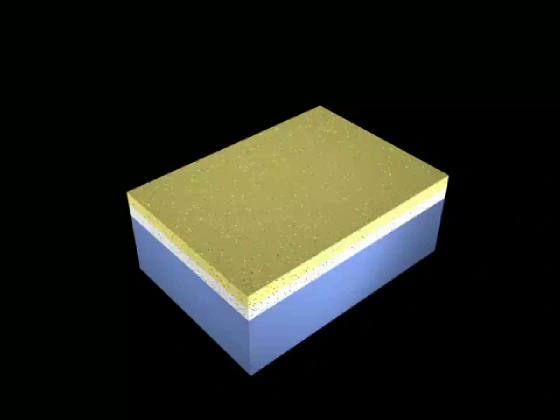

Mask #1 for Si3N4 patterning:

A photographic emulsion is applied.

Portions of emulsion are exposed to UV light projecting through a shadow mask.

Where UV light strikes the emulsion it breaks molecular bonds.

The regions of weakened emulsion are removed by a solvent.




(Click here to learn more about this micro photographic technique of patterning integrated circuits)
