Virtual Lab: Battery Water Wheels in Series
University of Virginia


© 2003-Present, John C. Bean

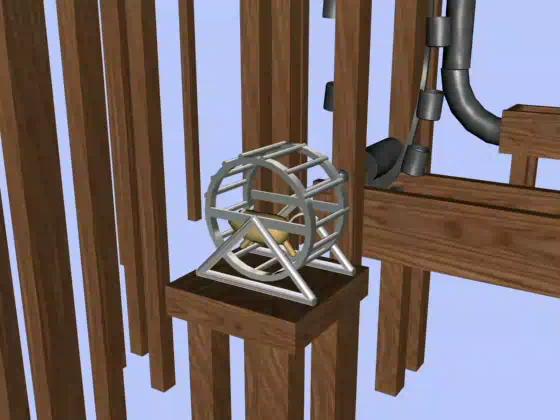

The first gerbil powers the first waterwheel bucket pump. She raises the water to a small reservoir increasing its potential energy.

The second gerbil powers a second waterwheel pump. He raises the water even higher, further increasing its potential energy.

In a circuit, each battery increases the energy of the electrons, which gives them voltage above that of the "ground" level. In batteries, energy is provided by chemical reactions rather than gerbils.
