Virtual Lab: Micron Technologies Fab
University of Virginia


© 2003-Present, John C. Bean

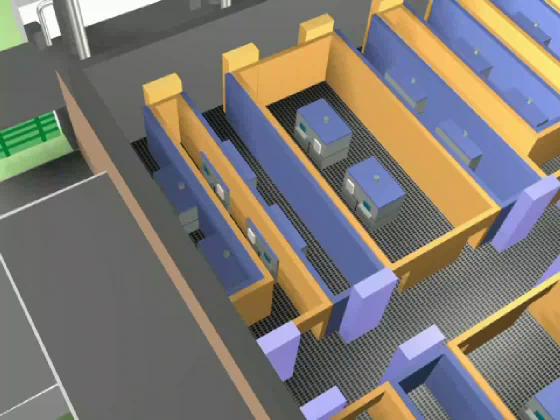

So finally we have an overview of both of the Fab processing lines. (Note, in reality, the equipment enclosures are not quite as uniform as we have depicted!)

In a classic mass production process, equipment would be positioned in a line from the first step to the last step. However, in IC manufacture, the wafers cycle through a given process step many times. As a result, the equipment layout is not so straight forward.
