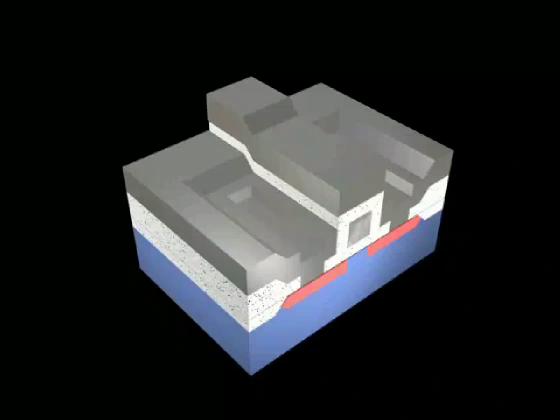

Mask #4 for metal patterning:

Photographic emulsion is applied.

Portions of emulsion are exposed to UV light projecting thru shadow mask.

UV light breaks bonds in emulsion molecules.

Exposed emulsion is removed by solvent.
